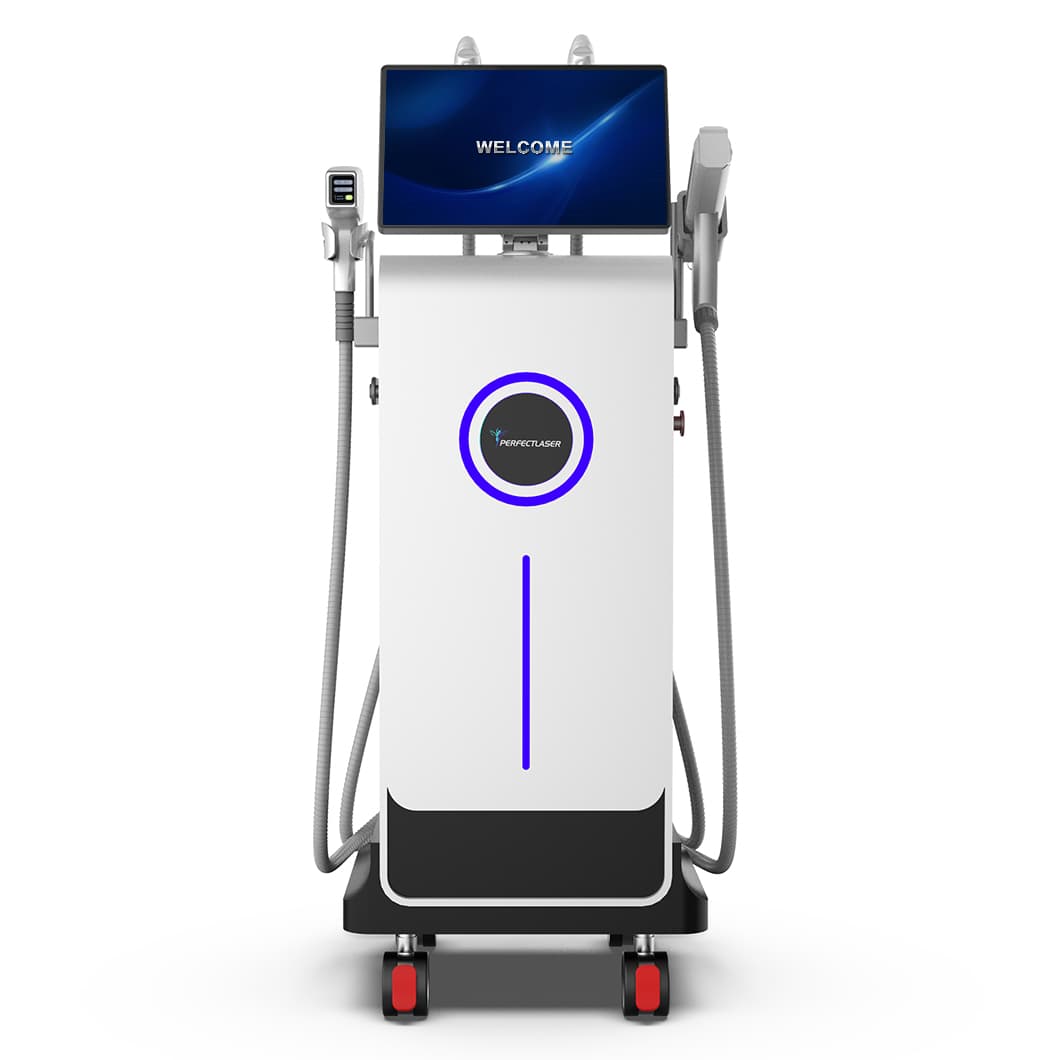

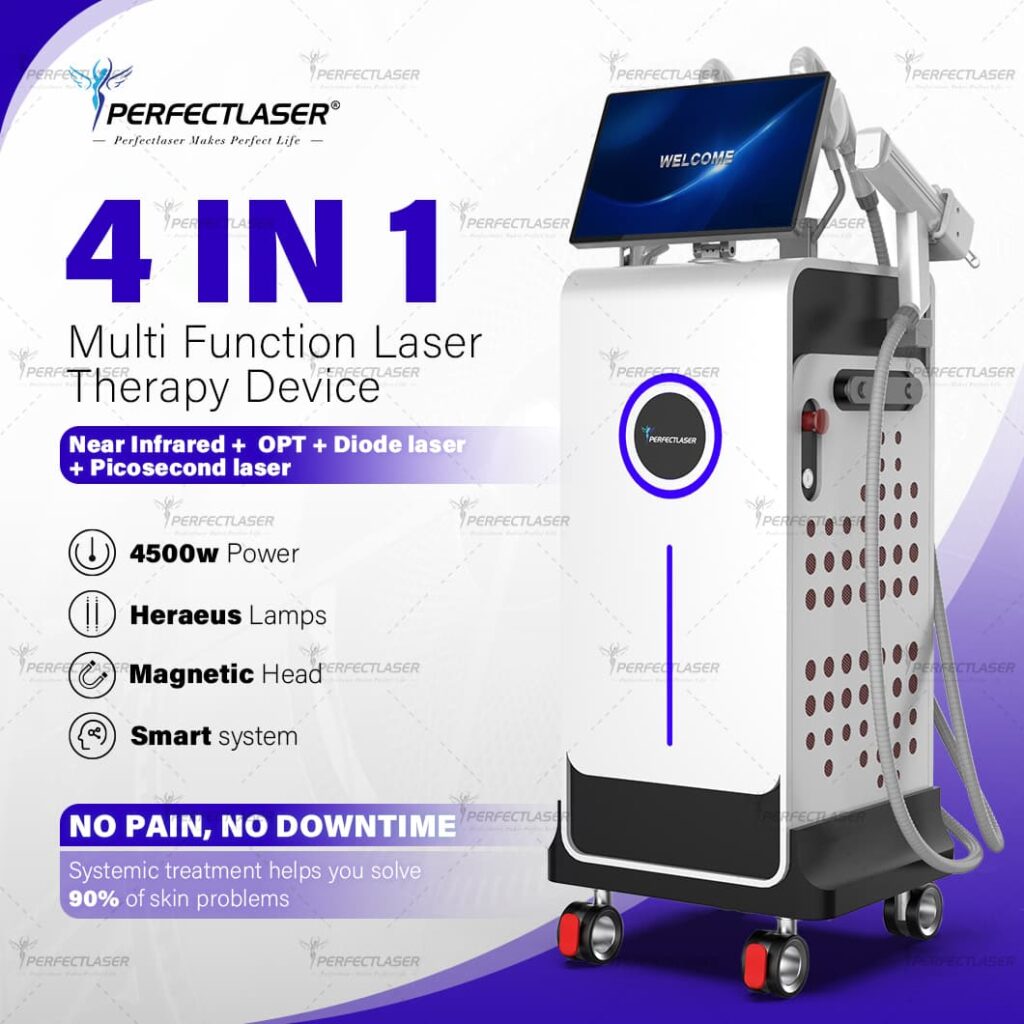

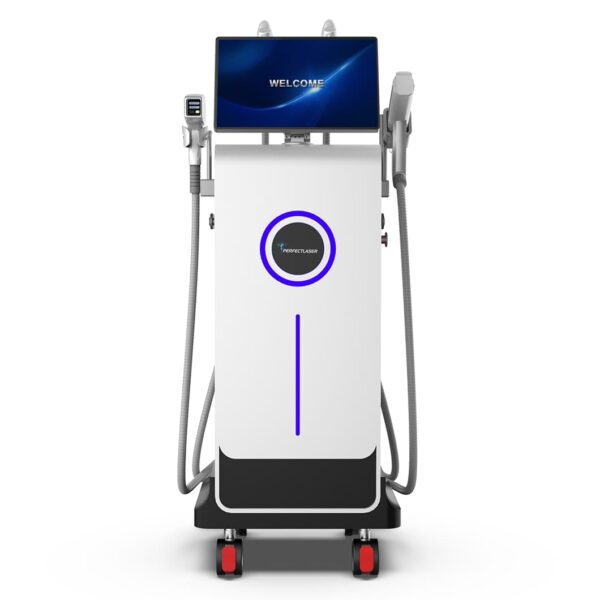

This is a multi-functional laser aesthetic device equipped with four specialized handpieces (OPT, Near Infrared, Picosecond, and 808), each designed for specific skin concerns and treatments. Below is a detailed explanation of its working principle and the functions of each handpiece.
1. Working Principle
Laser Types: The device utilizes advanced laser technologies, including Near Infrared, OPT (Optimal Pulse Technology), Diode Laser, and Picosecond Laser, combining different wavelengths and pulse durations for versatile treatments.

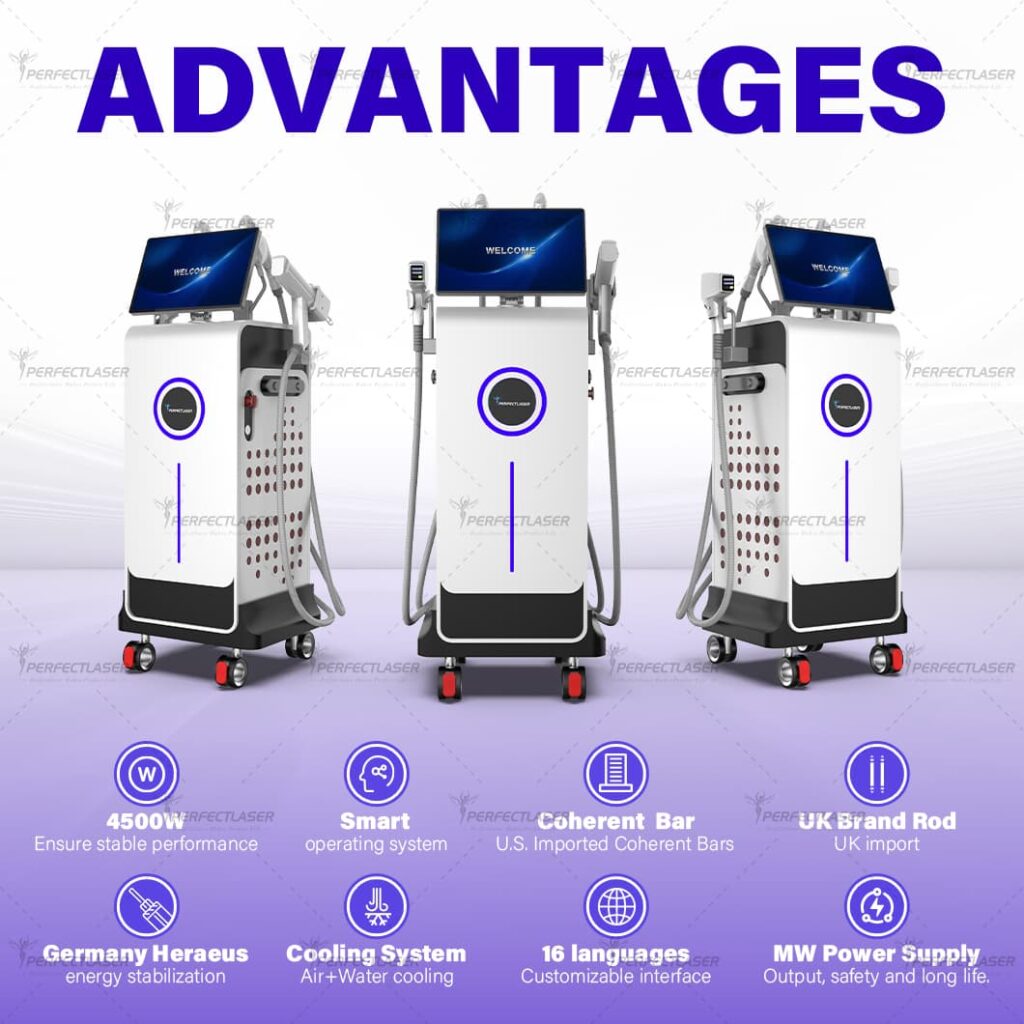

Cooling System: Integrates air cooling, water cooling, and fans to ensure stable operation and protect the skin from thermal damage (crystal temperature as low as -42°C).

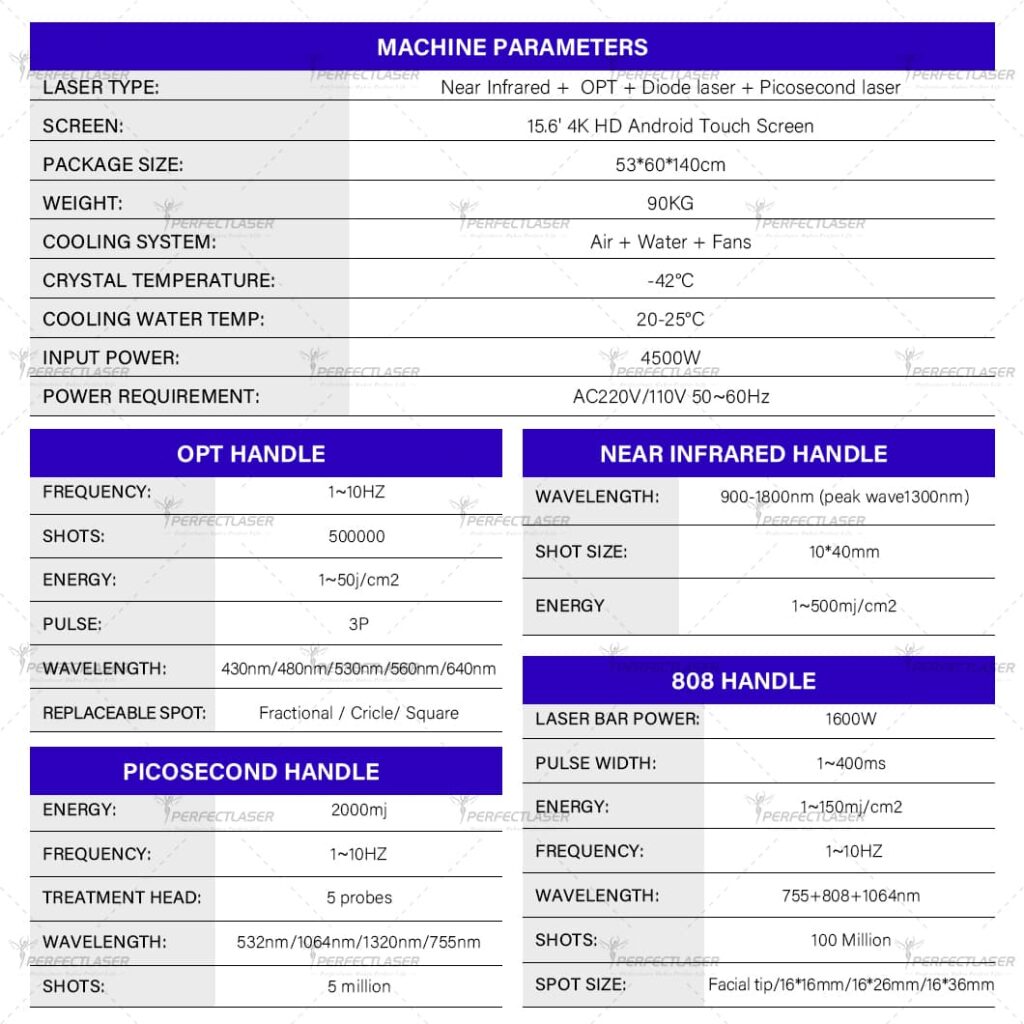

Energy Control: Precise energy adjustment (1~500 mJ/cm²) and frequency settings (1~10 Hz) allow customized treatments for different skin types and depths.
2. Functions of the Four Handpieces

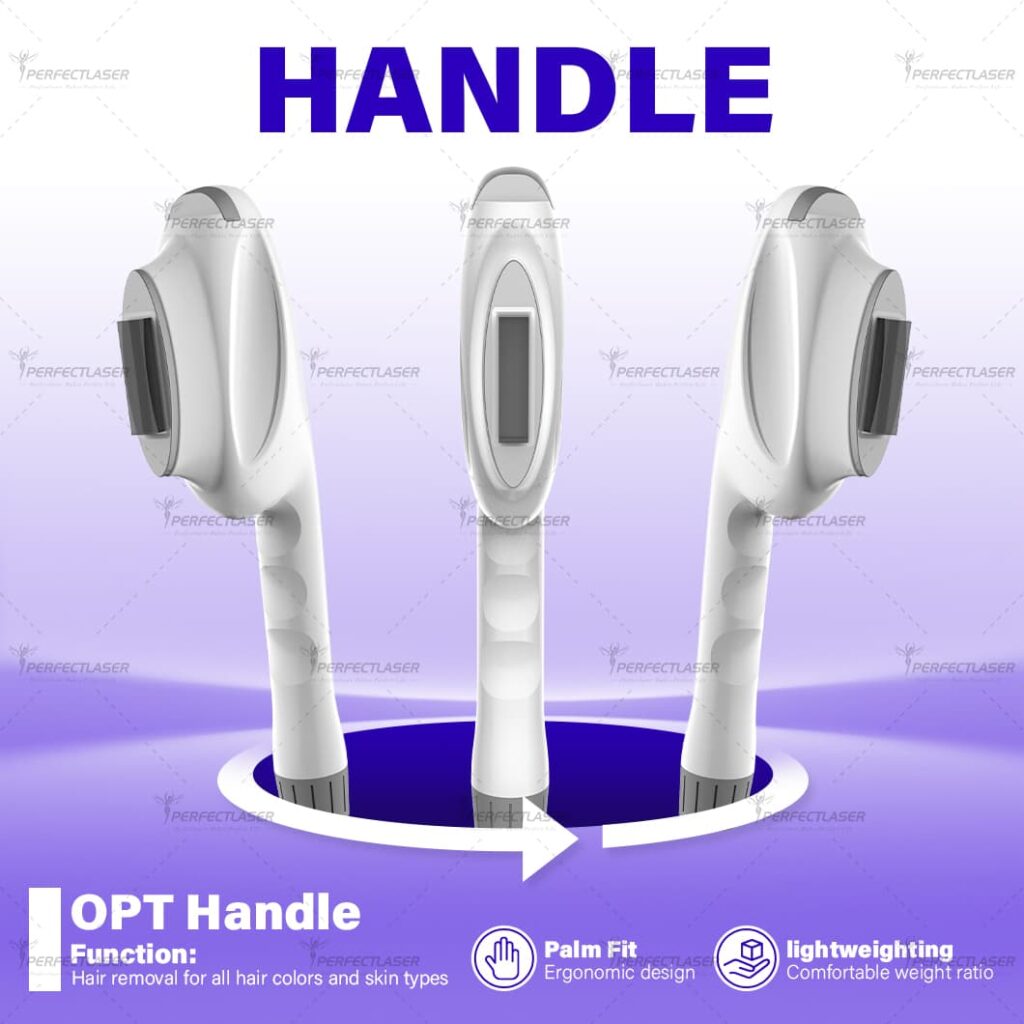

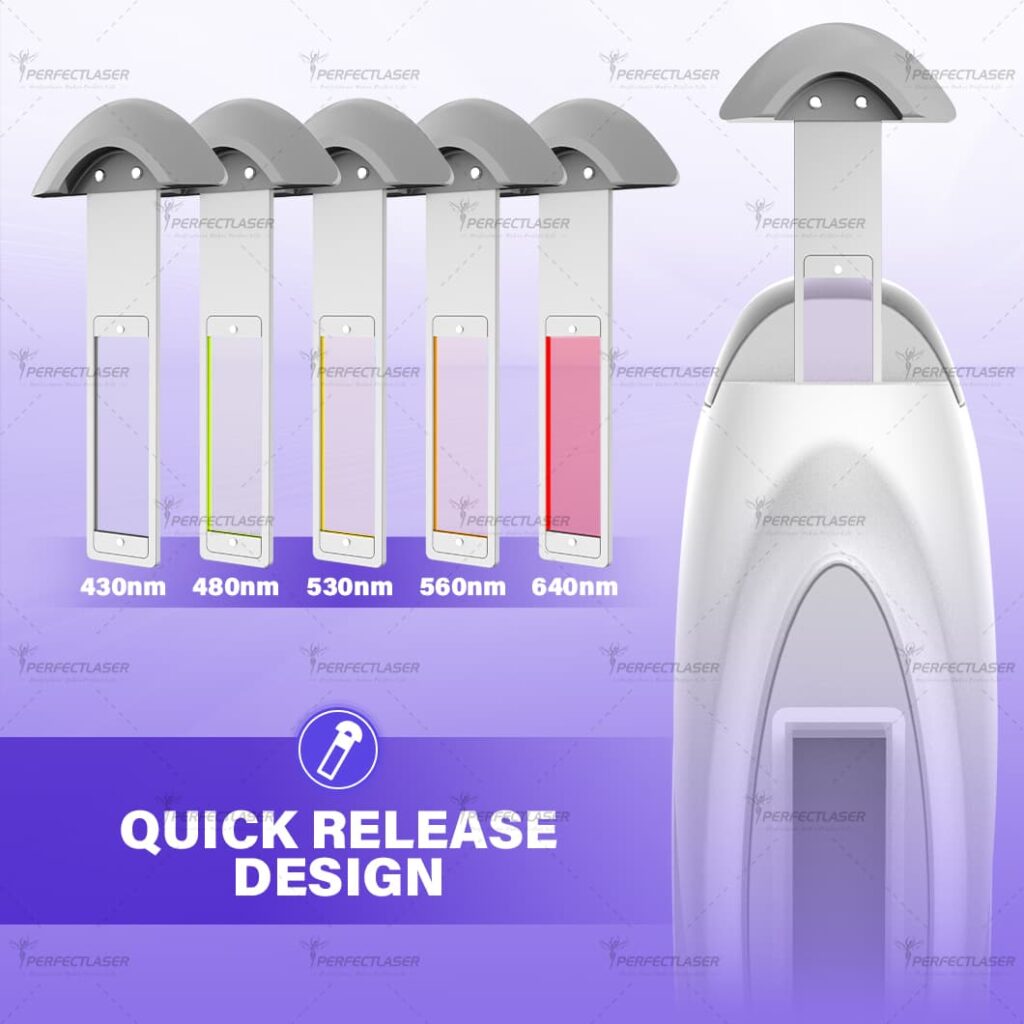

(1) OPT Handpiece
Wavelength: 430nm–640nm (multi-band, covering blue to red light).
Functions:
Pigmentation Treatment: Breaks down melanin to address spots and freckles.
Skin Rejuvenation: Stimulates collagen production, reducing pores.
Acne Treatment: Blue light (430nm) kills bacteria and reduces inflammation.
Features:

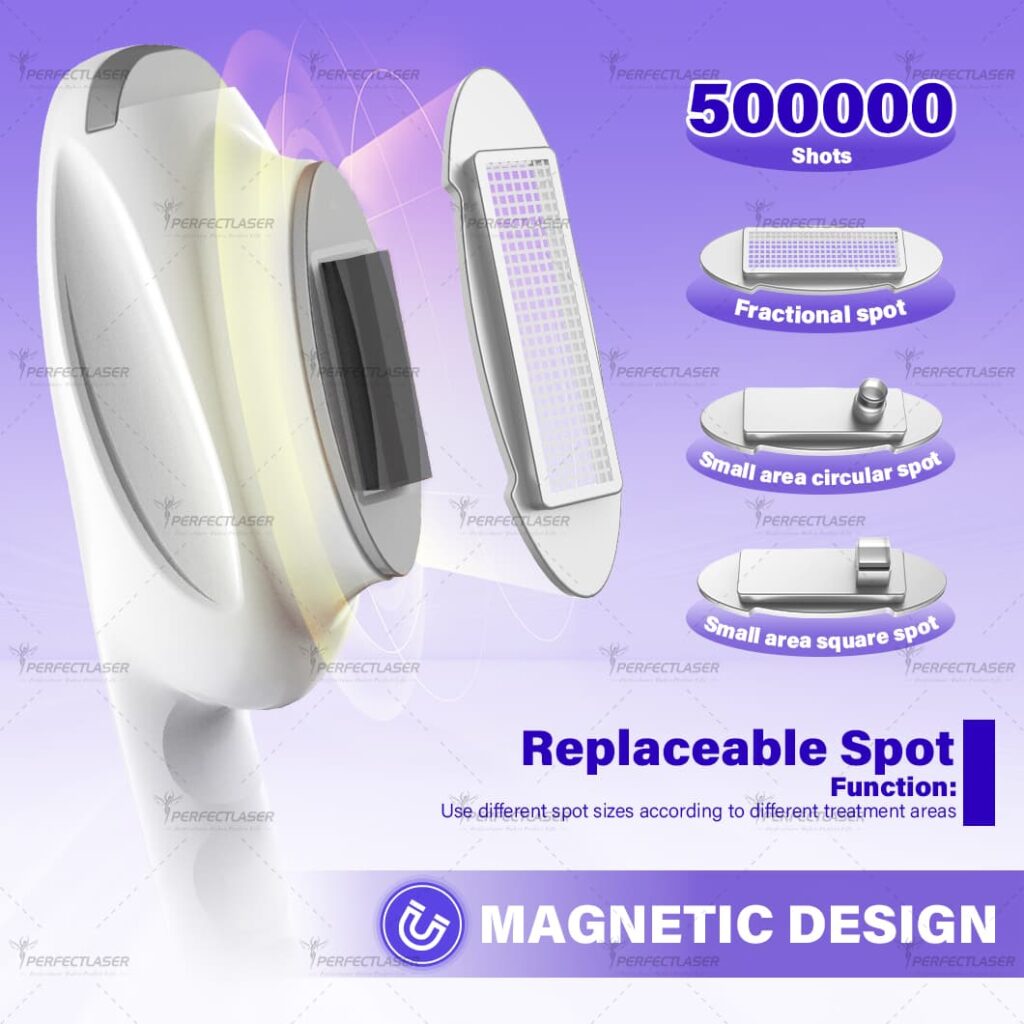

Interchangeable spot sizes (fractional/circle/square) for targeted treatment.
Wide energy range (1~50 J/cm²) for superficial skin concerns.

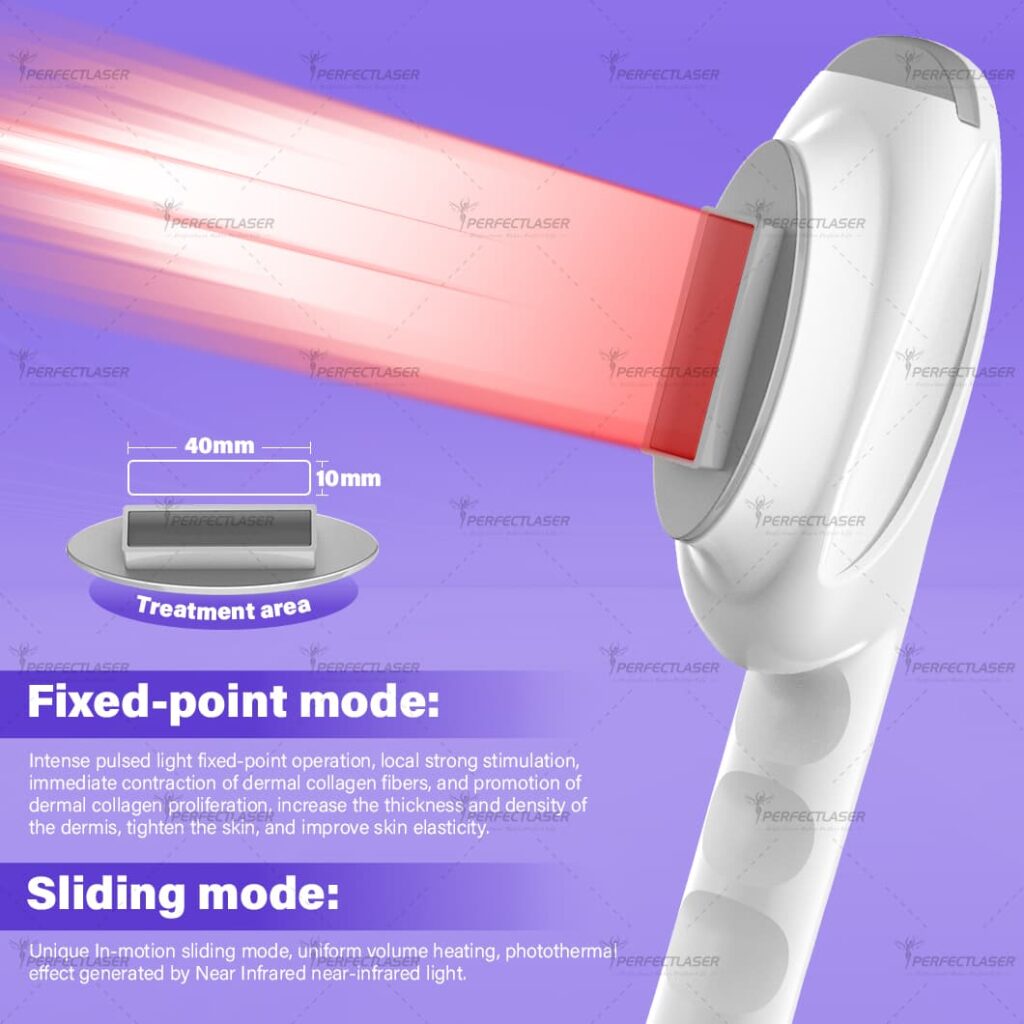

(2) Near Infrared Handpiece
Wavelength: 900–1800nm (peak at 1300nm, deep dermal penetration).
Functions:
Skin Tightening: Heats the dermis to stimulate collagen contraction and remodeling.
Fat Reduction: Targets fat cells for body contouring.
Features:
Large spot size (10×40mm) for efficient coverage.
High energy (1~500 mJ/cm²) for deep heating without epidermal damage.

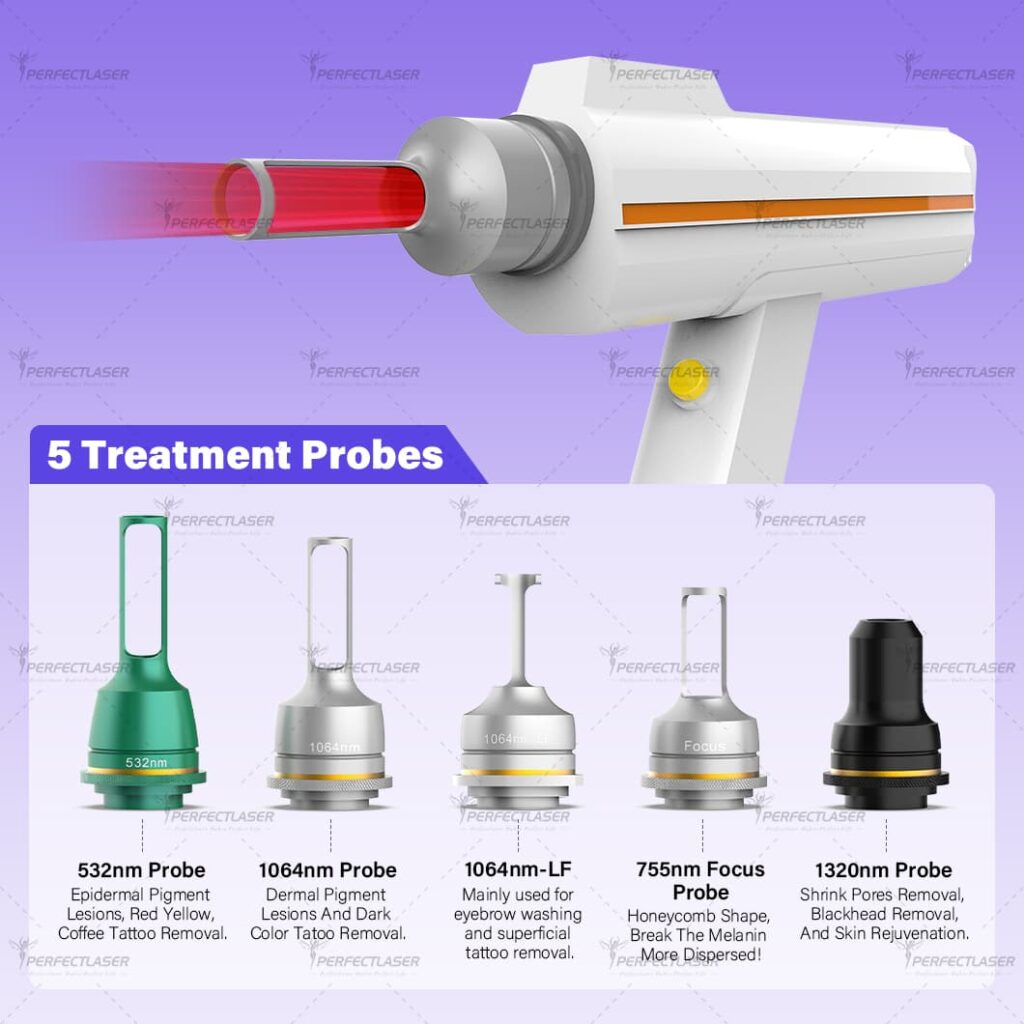

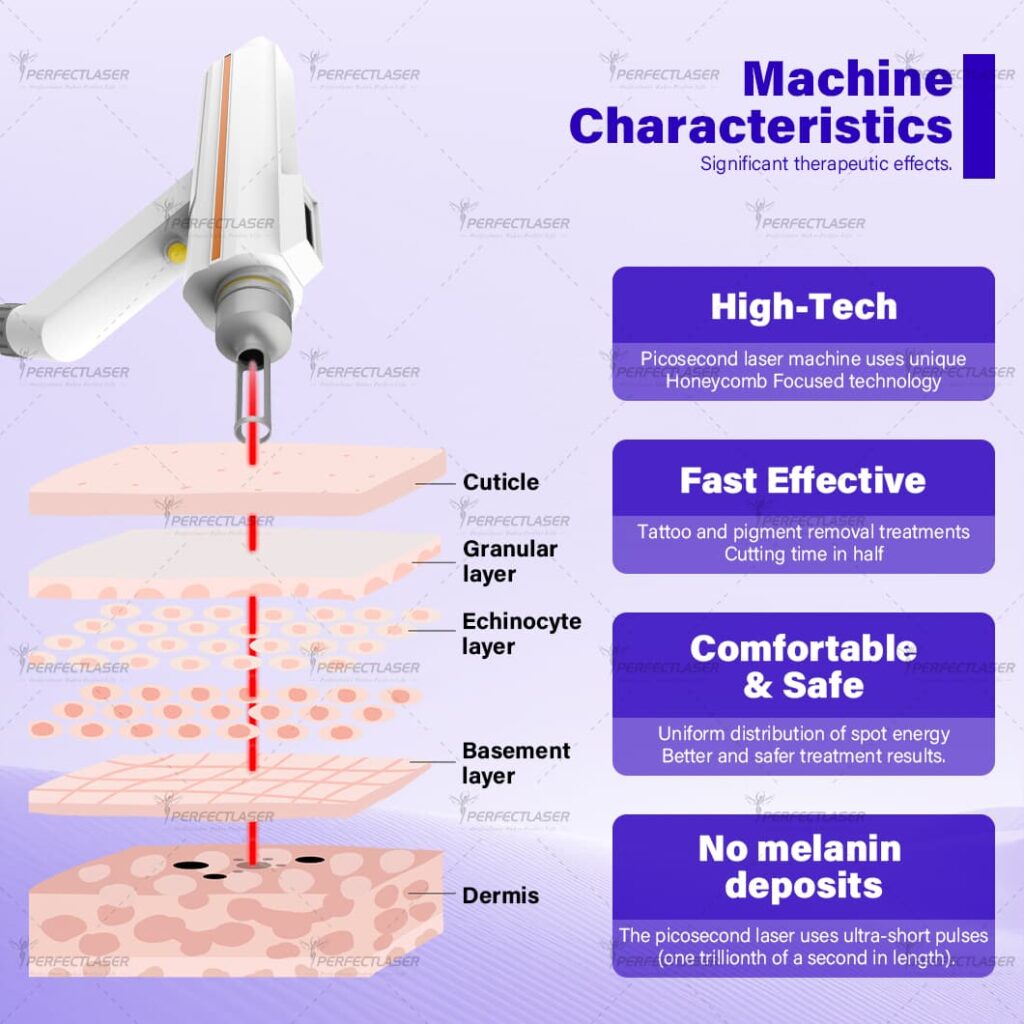

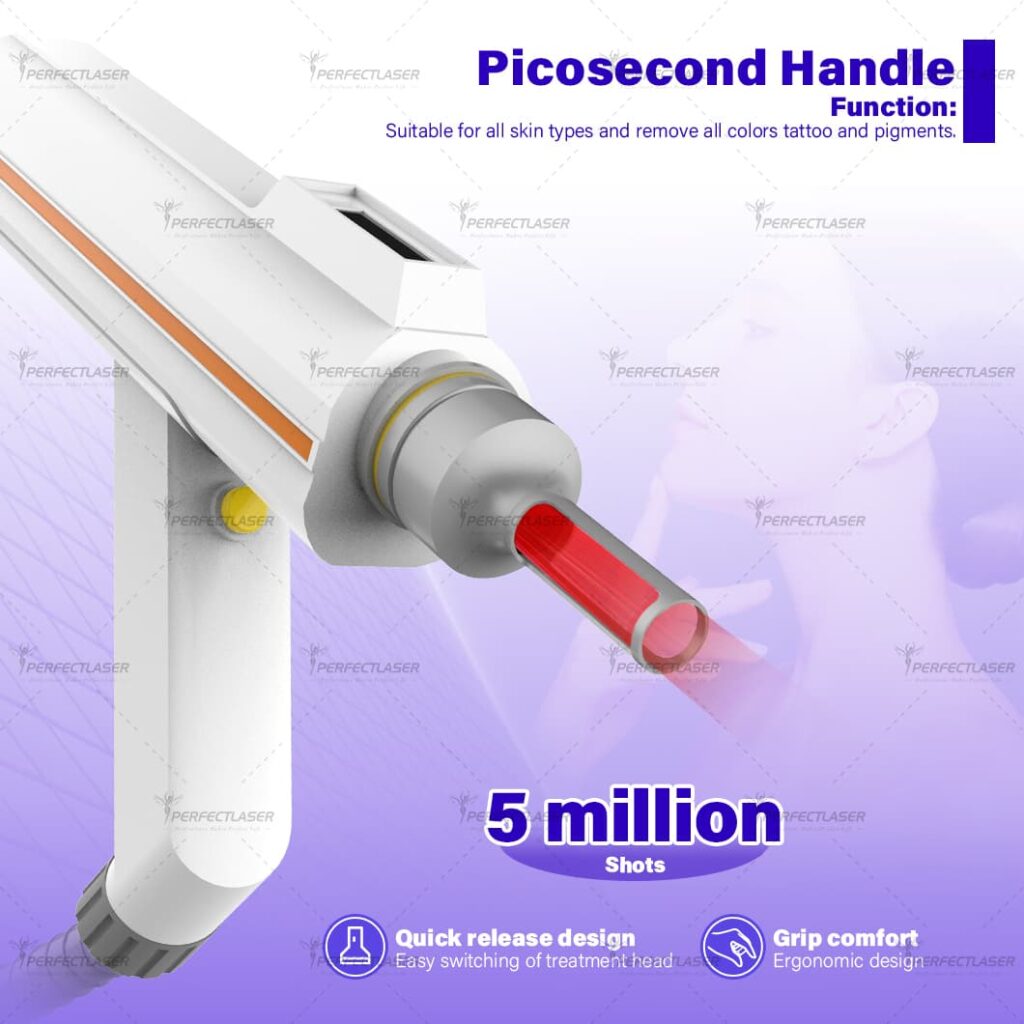

(3) Picosecond Handpiece
Wavelength: 532nm/755nm/1064nm/1320nm (multiple options).
Functions:
Tattoo & Pigment Removal: Ultra-short pulses (picosecond-level) shatter pigment particles.
Brightening & Anti-Aging: Promotes skin renewal, improving dullness and fine lines.
Features:
High energy (2000 mJ) with five treatment probes for versatility.
Long lifespan (5 million shots) for consistent performance.

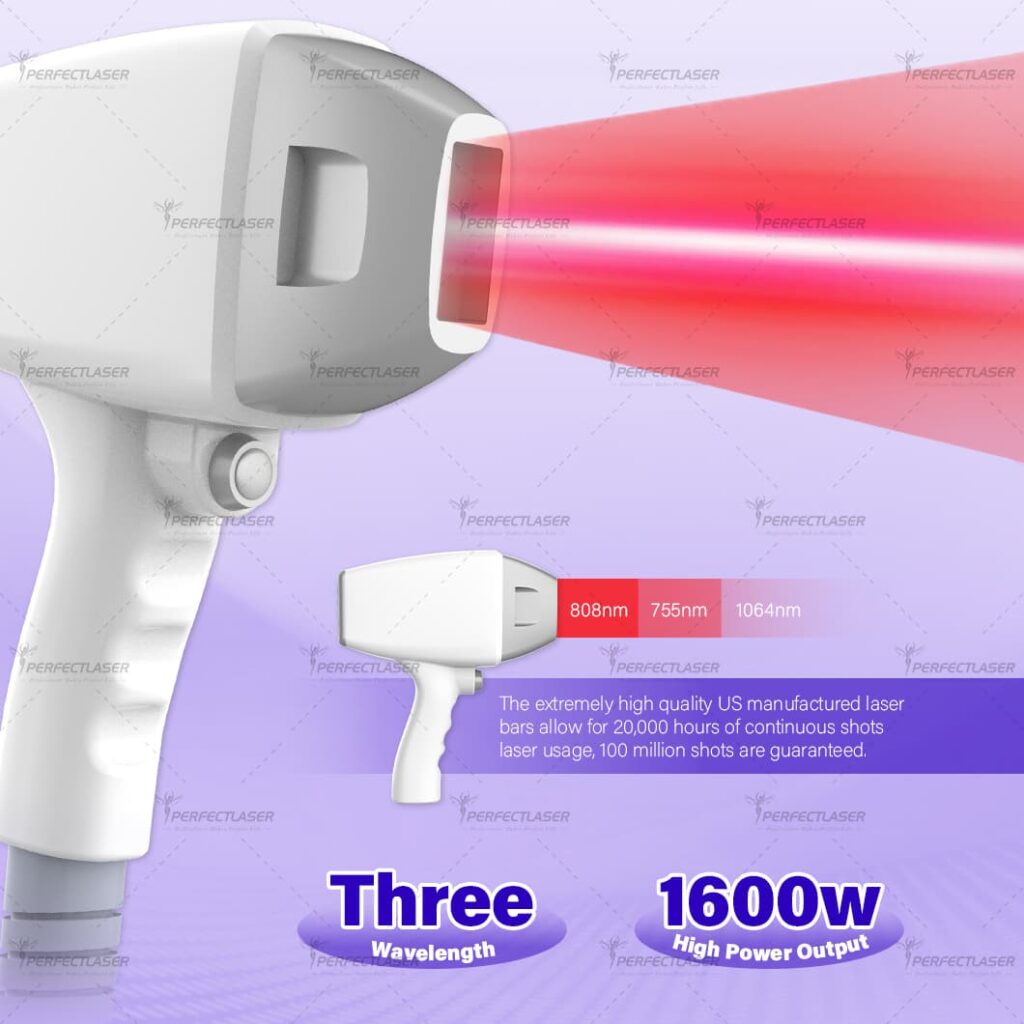

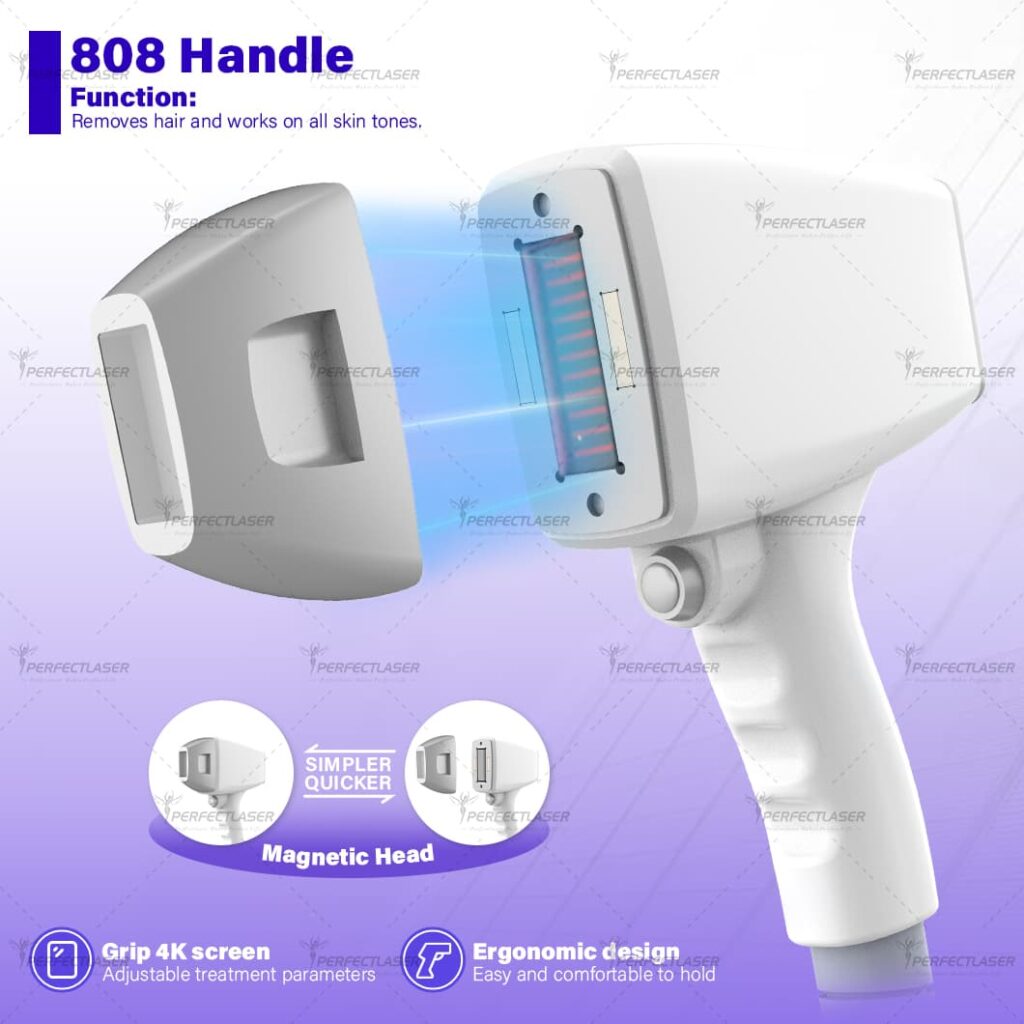

(4) 808 Handpiece
Wavelength: 755nm/808nm/1064nm (mixed wavelengths).
Functions:
Hair Removal: 808nm targets melanin in hair follicles for permanent reduction.
Vascular Treatment: 1064nm closes abnormal blood vessels, reducing redness.
Features:

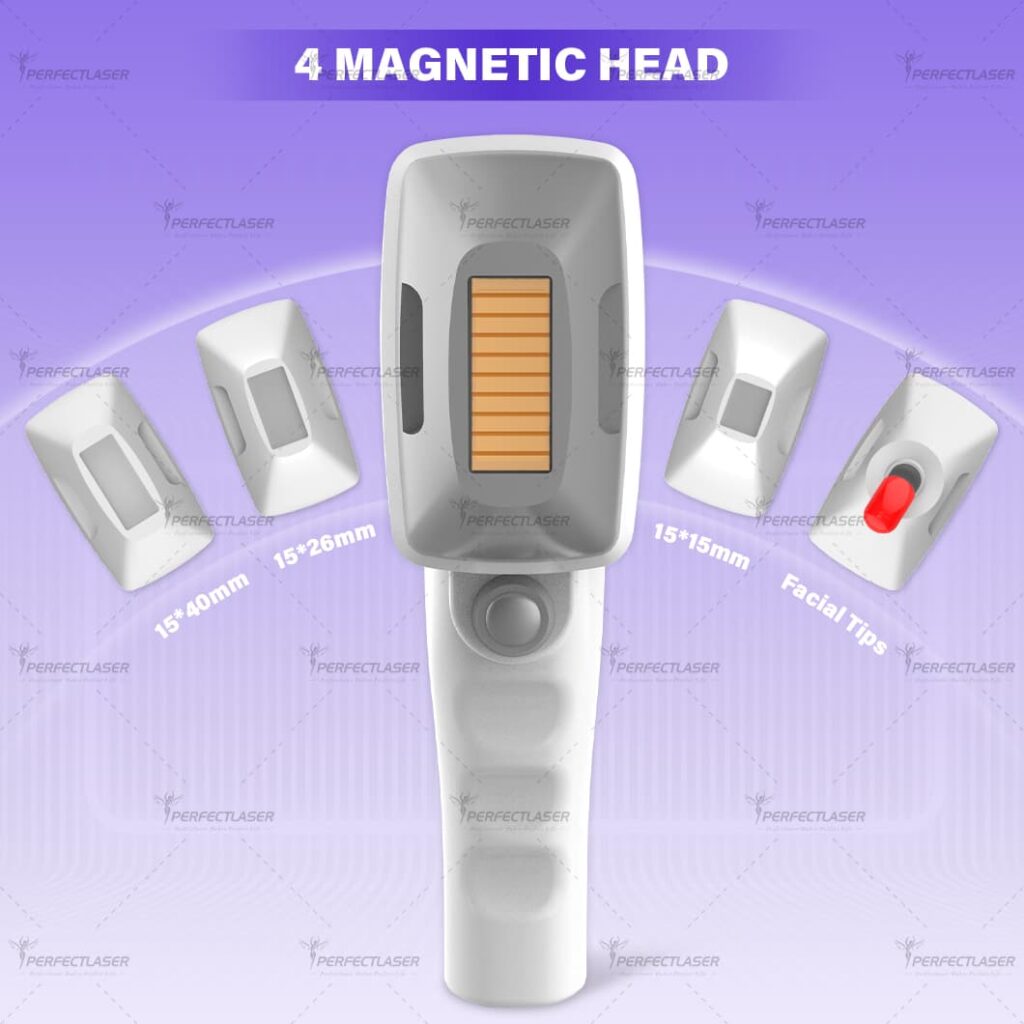

Multiple spot sizes (16×16mm to 16×36mm) for face and body treatments.
Extremely durable (100 million shots), cost-effective for long-term use.
3. Applications
Comprehensive Aesthetics: Addresses pigmentation, wrinkles, acne, hair removal, and skin tightening in one system.

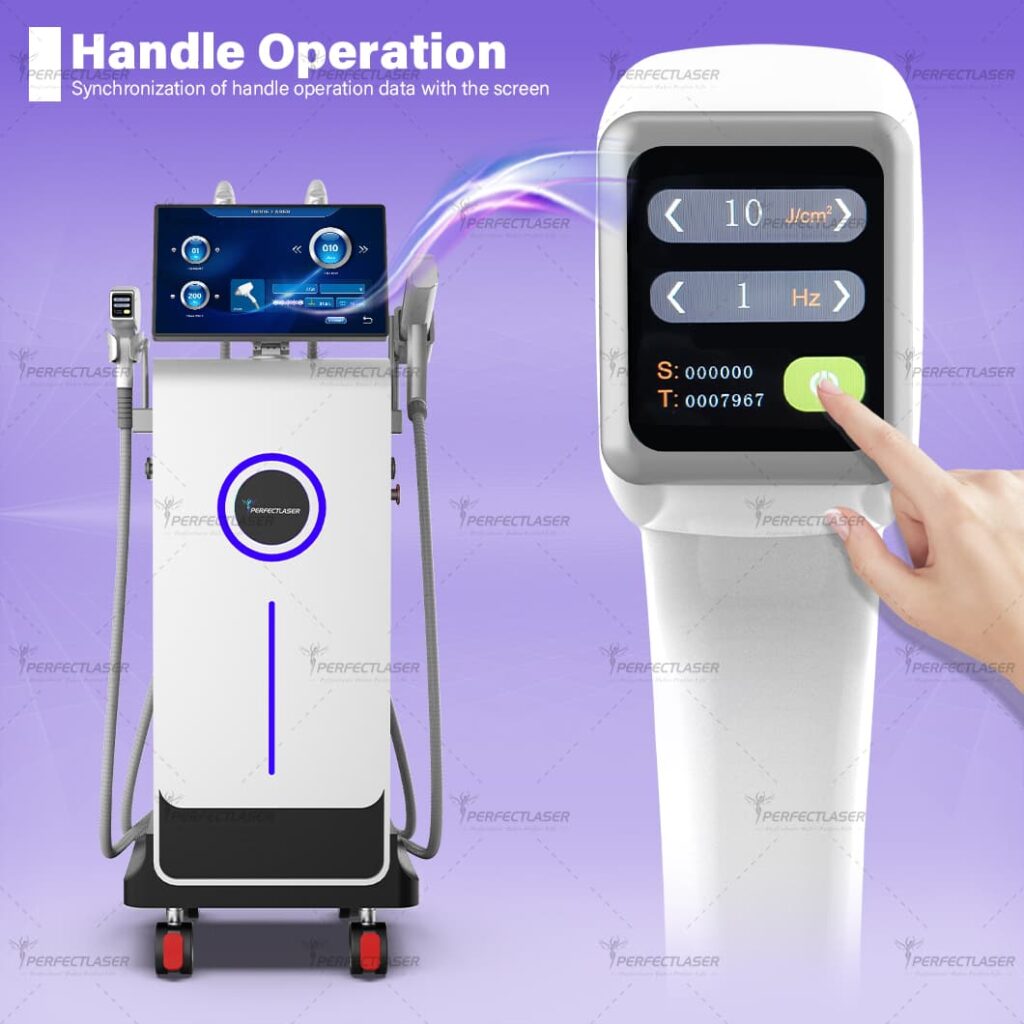

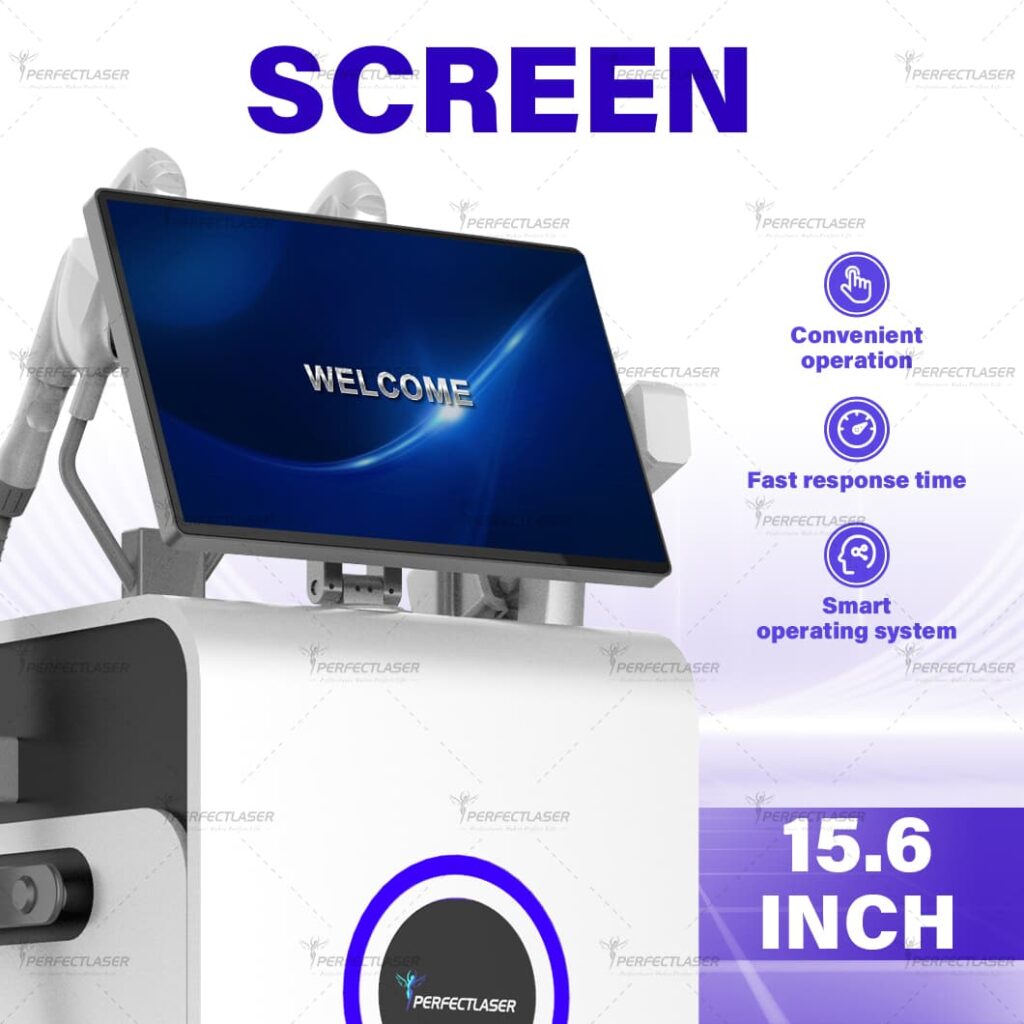

Customizable Settings: Touchscreen interface allows flexible parameter adjustments for different skin types and goals.
Safety & Efficiency: Multi-layer cooling ensures patient comfort and minimizes thermal risks.
This device is ideal for professional medical aesthetic clinics, offering modular handpiece options for tailored treatments based on patient needs.
